Aeroflow Ford Falcon FG Barra Intake Manifold - Black Finish -8ORB Fuel Rails to suit 14mm 3/4" Length Fuel Injectors (AF6228-7000)
'-8ORB Fuel Rails to suit 14mm 3/4" Length Fuel InjectorsFORD FG BARRA INTAKE MANIFOLD
-8ORB Fuel Rails to suit 14mm 3/4" Length Fuel Injectors
Part Number: AF6228-7000

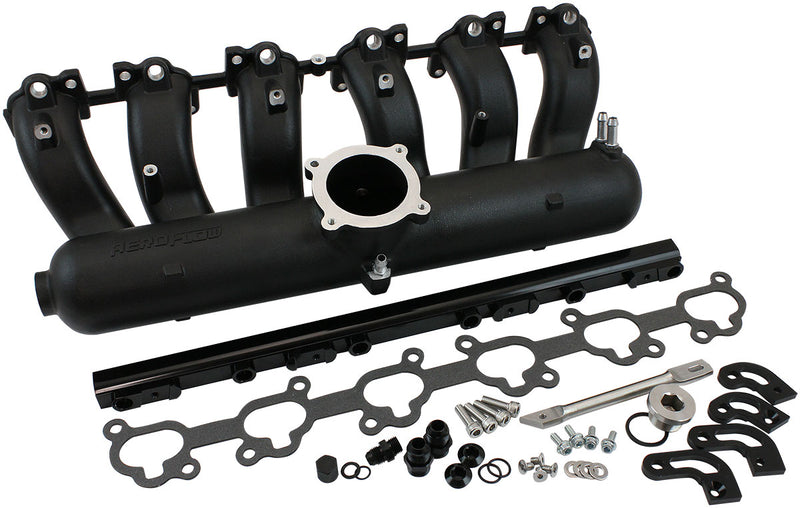

Upgrade your Barra intake manifold with the Aeroflow Performance cast FG style intake manifold. It is manufactured to replicate the OE factory FG design, ensuring optimal compatibility with the Ford Falcon Barra engine platform. It accepts the Ford FG OE throttle body with a centre feed which is a great upgrade for any Barra engine looking for higher horsepower. Also, a great retrofit option with the ability to relocate the throttle body inlet in another direction making this manifold perfect for narrow engine bay installs during conversions. Each intake manifold features vacuum ports with factory hose barbs to suit the factory OE hoses. A -8ORB billet fuel rail with -8AN adapter fittings are included in this kit to suit 3/4” length 14mm injectors (FG turbo factory injectors will also work). A stainless-steel centre brace to support the throttle body and intake gasket is provided for installation.
Specifications:
Suits 14mm 3/4" Length (48.5 mm) Injectors.
Port Size of this intake manifold is 1.20 x 1.92".
M30 x 1.5mm thread for plug end (stainless steel plug included).
Manifold Includes:
- 1 x 1/2" NPT ports.
- 3 x 3/8" NPT ports.
- 1 x 1/4" NPT ports.
- 1 x 1/8" NPT ports.
- Fuel Rail kit with brackets (-8ORB Ports).
