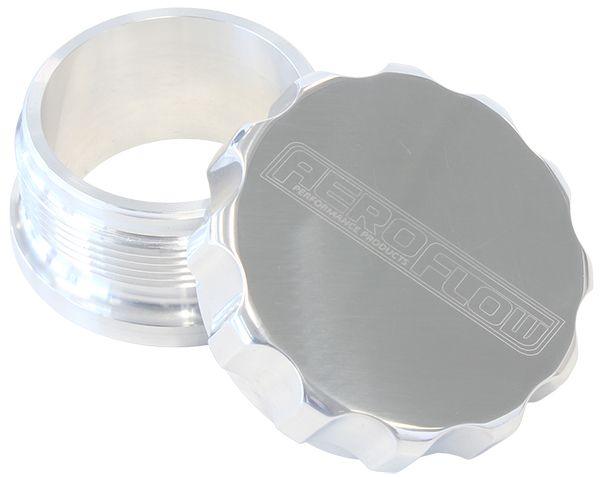

Aeroflow 1" Billet Aluminium Weld-On Filler with Polished Cap (AF460-16P)

AF460-16P - 1" ALUM WELD BUNG AND CAP

Part Number: AF460-16P

Billet Alloy Weld On Filler & Cap.

Aeroflow Performance non-vented filler caps are manufactured from 6061-T6 aluminium and are supplied with BUNA-N (wide range of fuel and oils) and EPR (Nitro methane fuel O-Ring seals. Available in 1", 1-1/2", 2", 2-1/2" & 3" diameters in Blue, Red, Black, Gold, Purple, Raw, Polished and Silver anodized finishes.

Bore Size: 25.4mm (1")

Neck O.D.: 33mm (1-5/16")

Neck Height: 25.4mm (1")

Specifications: Bore - 25.4mm (1")
Neck Outside Diameter - 33mm (1-5/16")
Cap Internal Diameter - 31mm (1-7/32")
Overall Height - 27.5mm
Thread - 1-5/16"-12 UNF
Replacement O-Ring Kit - AF460-16-KIT
