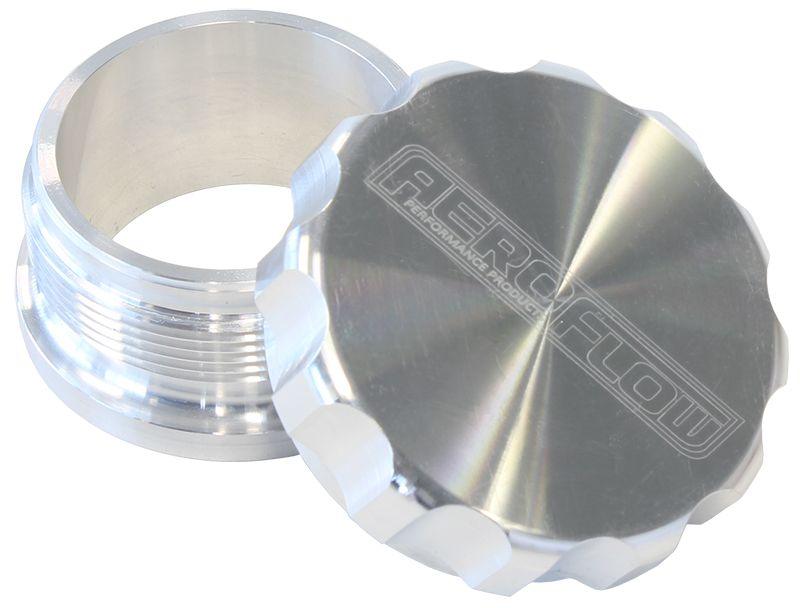

Aeroflow 1-1/2" Billet Aluminium Weld-On Filler with Raw Cap (AF460-24)

AF460-24 - 1.5" ALUM WELD BUNG AND CAP

Part Number: AF460-24

Billet Alloy Weld On Filler & Cap.

Aeroflow Performance non-vented filler caps are manufactured from 6061-T6 aluminium and are supplied with BUNA-N (wide range of fuel and oils) and EPR (Nitro methane fuel O-Ring seals. Available in 1", 1-1/2", 2", 2-1/2" & 3" diameters in Blue, Red, Black, Gold, Purple, Raw, Polished and Silver anodized finishes.

Bore Size: 38.1mm (1-1/2")

Neck O.D.: 46mm (1-13/16")

Neck Height: 25.4mm (1")

Specifications: Bore - 38mm (1-1/2")
Neck Outside Diameter - 46mm (1-13/16")
Cap Internal Diameter - 44mm (1-47/64")
Overall Height - 35mm
Thread - 1-13/16"-12 UNF
Replacement O-Ring Kit - AF460-24-KIT
