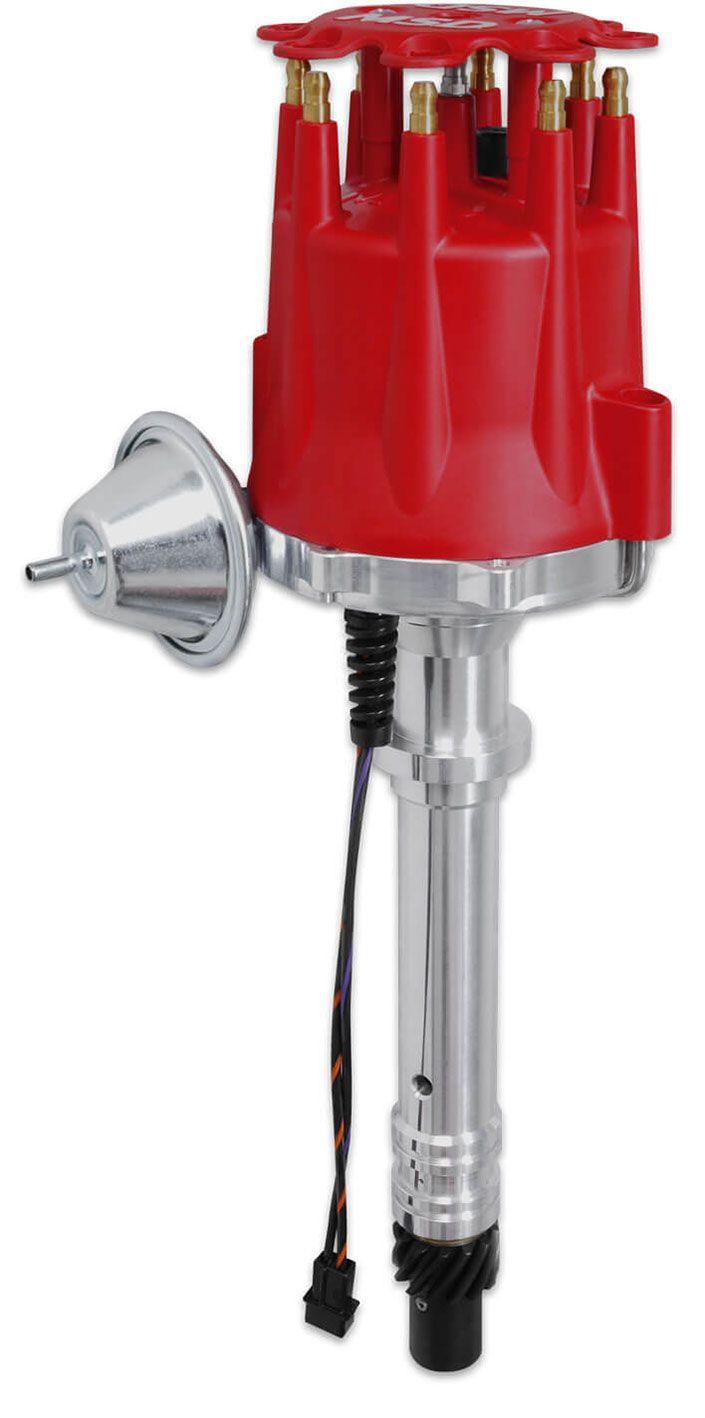

MSD Pro-Billet Street Distributors (MSD8361)

• Designed for street/performance use with a mechanical and vacuum advance
• Easy-to-adjust mechanical advance with supplied springs and stop bushings
• Vacuum advance canister for improved economy (can be locked out)
• CNC machined billet aluminium housing and billet aluminium base
• Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
• Polished steel shaft is QPQ coated and guided by a sealed ball bearing
• Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
• Mechanical advance assembly can be locked out for crank trigger systems
• Advance weight pins are staked and tig welded to the plate
• Nylon pads ensure smooth operation of the advance weights
• Special oil tract improves lubrication to the distributor and cam gea r n be added to modified blocks to improve oil pressure control
• These distributors require the use of a separate ignition box, such as an MSD 6, 7, 8, or 10 Series ignition.

The Street Pro-Billet is a popular route for people looking for proven race performance for their street cars. A vacuum advance canister provides economy and the proven MSD mechanical advance gives you the opportunity to dial-in a timing curve to fit your needs. Inside, an oversized steel shaft is QPQ-coated for low friction and rides in a sealed ball bearing at the top of the distributor with an extra-long sintered bushing at the bottom. This combination keeps the shaft steady creating accurate spark delivery at any rpm. The Street Pro-Billet relies on a magnetic pick-up to trigger the MSD Ignition Control which delivers the powerful sparks to the coil. This pick-up is extremely accurate and never needs adjusting.
