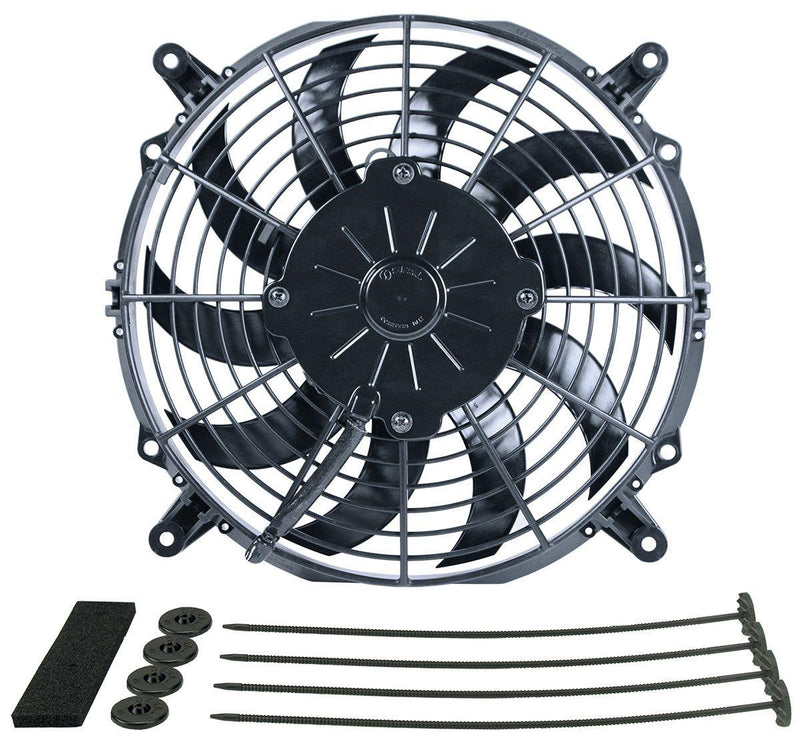

Derale 10" High Output Electric Thermo Fan (DP16110) DP16110

Derale 10" High Output Electric Thermo Fan (DP16110)

820 cfm - Puller Type With Curved Blades
SKU: DP16110
$243.90 - $243.90
$243.90
$243.90 - $243.90
$243.90
+ GST
Stock Status: ⚠️ Low stock — contact before purchasing

10" HIGH OUTPUT ELECTRIC FAN

820 cfm - Puller Type With Curved Blades

Part Number: DP16110

A 10" Diameter version of our high performance H.O. Extreme series of electric fans, this powerful unit uses 10 thin, curved blades to provide a low profile (only 2 1/16" at widest point) for limited space applications. Using a sealed IP68 certified waterproof & dustproof motor that lasts up to 3 timeslonger than normal electric fan motors, this puller fan isdesigned to provide maximum performance at high static pressure loads. Mounting kit and installation instructions included.

Features

  • Primary cooling fan eliminatesfuel and horsepower robbing belt driven fans
  • 10 thin curved blades allow ultralow profile design for limitedspace applications
  • Sealed waterproof/dustproof IP68 certified motors
  • Ultraquiet S-blade designs
  • Designed for maximum performance at high static pressure loads for moreeffective cooling
  • Longlasting, sealed IP68 certifiedwaterproof & dustproof motor
  • 825 CFM
  • Includes mounting kit and illustrated installation instructions
  • Puller only (engine side)

Specifications

  • CFM fan: 825
  • Amp draw: 9.2
  • Width: 10-9/16"
  • Height: 11-1/8"
  • Depth: 1-1/8"
  • Overall Depth: 2-1/16"
  • Mounting: 9-11/16" x 5-13/16"
