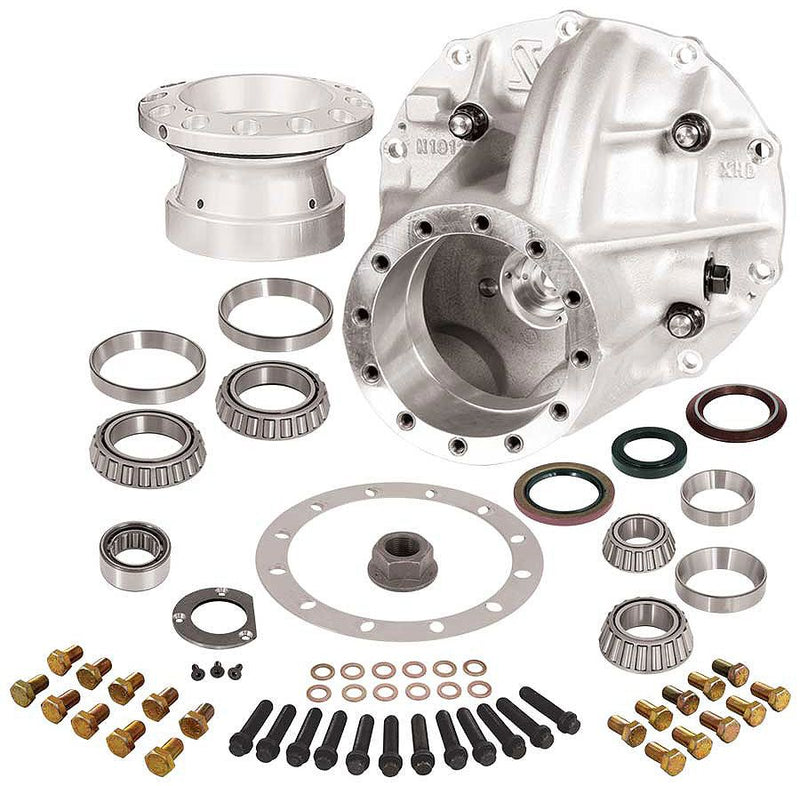

Strange Ultra Case Package With 3.250" Bore (STP3250LT)

STP3250LT - STRANGE ALLOY ULTRA CASE PACK

Fits Large Stem 35 Spline Pinion

Part Number: STP3250LT

The heavy duty aluminum 9" Ultra Case is engineered to provide better lubrication to the pinion bearings and easily accept 9.00" or stronger 9.50" gear sets. The Ultra Case incorporates a uniquely designed pinion support that coalesces with the case to provide superior ring and pinion life. Four chrome-moly studs are encapsulated by billet caps, allowing for shorter and stronger studs. The tail bearing is larger than factory, which can withstand greater rpm speeds and is secured by a special retainer plate.
Strange also offers a lightweight Ultra Case, featuring a taper/ball bearing pinion support. This unique 3.812" bore case incorporates a billet aluminum pinion support that has been pocket milled for reduced weight and embodies a low friction angular contact pinion ball bearing. The case and caps have been modified to further reduce static weight. The lightweight Ultra case/pinion support is 1.75 lbs. lighter than our standard Heavy duty Ultra Case/pinion support package.
Both Ultra 9" Cases provide superior strength through encapsulated cap studs, a larger than stock tail bearing, 12 pinion support bolts and a unique casting design, which provides strength and optimises bearing lubrication. Strange offers the Ultra Case assemblies in three different bore sizes.
Strong enough to endure Pro-Mod, Alcohol & heavy door car applications
Extra long pinion support and substantially larger pinion bearings for improved pinion shaft support and increased ring & pinion life
Optional ball bearing pinion support available
Premium grade aluminum
Chrome-Moly and encapsulated studs
Accepts 9" & 9.50" gear sets
Enhanced lubrication
Extra wide tail bearing

Tail bearing retainer plate
Wide billet caps
Fully machined adjuster nuts
Optional load bolt
