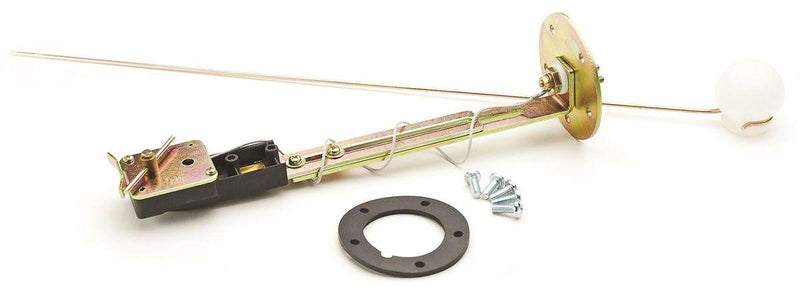

Dakota Digital Universal Fuel Level Sender (DAKSEN-06-1) DAKSEN-06-1

Dakota Digital Universal Fuel Level Sender (DAKSEN-06-1)

180 ohm Full / 10 ohmEmpty
SKU: DAKSEN-06-1
$101.60 - $101.60
$101.60
$101.60 - $101.60
$101.60
+ GST
Stock Status: ⚠️ Low stock — contact before purchasing

DAKOTA FUEL LEVEL SENDER

180 ohm Full / 10 ohmEmpty

Part Number: DAKSEN-06-1

Universal Automotive Fuel Level Sender with an adjustable float will accommodate many aftermarket fuel cells.

  • Resistance range: 10 ohms empty -180 ohms full (VDO style)
  • GM Style 5-bolt mounting pattern: 2.8” overall flange size,  2.125" bolt circle, 1.7" hole size
  • 5x 10-32 x ½” mounting screws and gasket included
  • Adjustable to tank depths of 6-23"
  • Top-mount applications only; without fuel pickup or return line
  • Compatible with all Dakota Digital Automotive gauges (not compatible with Motorcycle or UTV)
