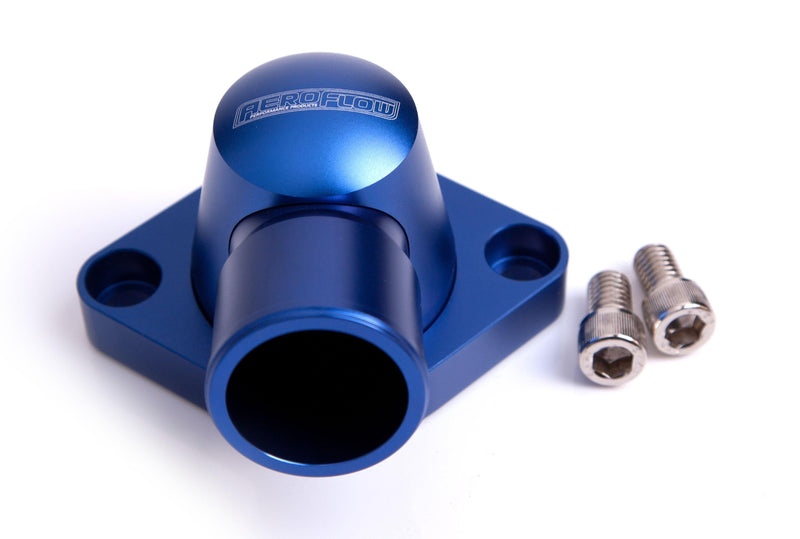

Aeroflow Billet Thermostat Housing - Blue (AF64-2034)

AF64-2034 - BILLET THERMOSTAT HOUSING

Suit SB, BB Chevy, (Swivel)

Part Number: AF64-2034

Suits Small Block and Big Block Chevy (V8 1955 to 1986).

Accepts GM Thermostat.

The Aeroflow Performance billet thermostat housings are a three-piece design that allows for correct positioning of the outlet to suit a large array for applications especially in conversions where small can be an issue. Machined from T6-6061 billet aluminium and allows for a full 360-degree swivel rotation for ease of installation. All Aeroflow Performance thermostat housings feature an O-ring base flange, as opposed to using the factory paper style gasket, this ensured a superior leak free seal. Each thermostat housing outlet can be untreated exposing a female 1-1/4”-20 thread to adapt a AN fitting or a larger barb fitting for custom applications. Available in several anodised finishes.

Replacement O-ring and bolts - AF59-2034

Specifications: Centre to Centre of Bolt Holes
- 85.30mm (3-11/32").
Overall Height
- 60.85mm (2-25/64").
Overall Length
- 101.90mm (4-1/64").
Width of Body
- 70.80mm (2-25/32").
Radiator Hose Size
- 38.25mm (1-1/2").
Radiator Hose Angle
- 15 Degree.
