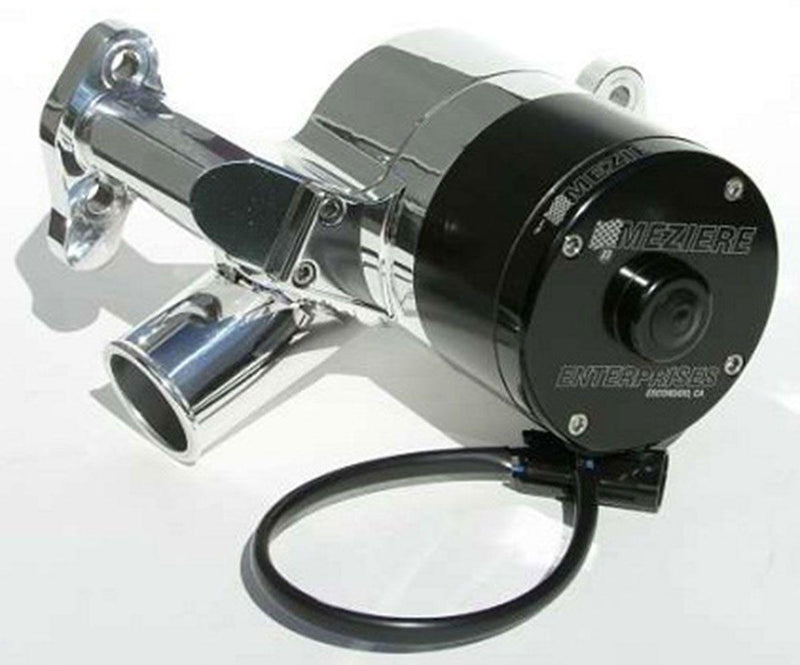

Meziere Electric Water Pump, Fits Small Block Chev, High Flow Style, Polished Finish (MZWP301U)

Meziere Electric Water Pump, Fits Small Block Chev, High Flow Style, Polished Finish (MZWP301U)

55GPM,Standard Motor
SKU: MZWP301U
$1,244.90 - $1,244.90
$1,244.90
$1,244.90 - $1,244.90
$1,244.90
+ GST
Availability:
Low stock, please contact before purchasing

MZWP301U - ELECTRIC WATER PUMP SBC , 4.3

55GPM,Standard Motor

Part Number: MZWP301U

American made with quality far superior to any other performance aftermarket company, we build our water pumps with pride right here in the USA. Don't be mislead by inflated flow numbers and competitors' outlandish claims. Our 300 series pumps move more water and produce more pressure than any other electric pump on the market. That means better protection for your high horsepower, high demand engine!

This water pump model features
:
Fits small block Chevrolet
Suitable for street or drag strip use - 3000 hour life expectancy
Show quality polished finish

High flow design provides 55 gallons per minute free flow rating
All stainless steel hardware included
Light weight. Complete small block Chevy unit weighs only 7.4 pounds!
Stainless steel large diameter main shaft with high performance eramic seal
Pump will clear cam belt drives and most blower drives
Welded 1-3/4" inlet connection

Technical Specifications
:

Belt Drives: Standard SBC design will clear Jesel belt drives and comparable belt drive systems.
Distributor Belt Drives: Spacers will be necessary to clear belt drive distributor systems.
Finishing The System: This pump is supplied complete with gaskets and hardware. No additional items should be necessary for standard installations.
Amperage draw: Under normal use the pump will draw 11-12 amps.
Overall Height Dimension: The standard pump is 7.2" long from the mounting surface to the tip of the pump.
Pump Weight: This application weighs 7.4 lbs.
16 volt systems: When purchasing a pump for a 16 volt system we recommend the 16 volt optional motor on our pump. The 12 volt pump will work for limited use applications.
Additional Notes:
The standard 35 GPM pump is suitable for normally aspirated engines up to 650HP. Supercharged, turbocharged and high compression, high horsepower applications should use the 55GPM High Flow pump only. This model does not accept heater or bypass hoses as a standard.
Accessories for Small Chevy:
Water Pump Spacers:
Thickness .9" WPS101
Thickness 1.5" WPS101-1.50
Relay Wiring Kit upgrade WIK346
