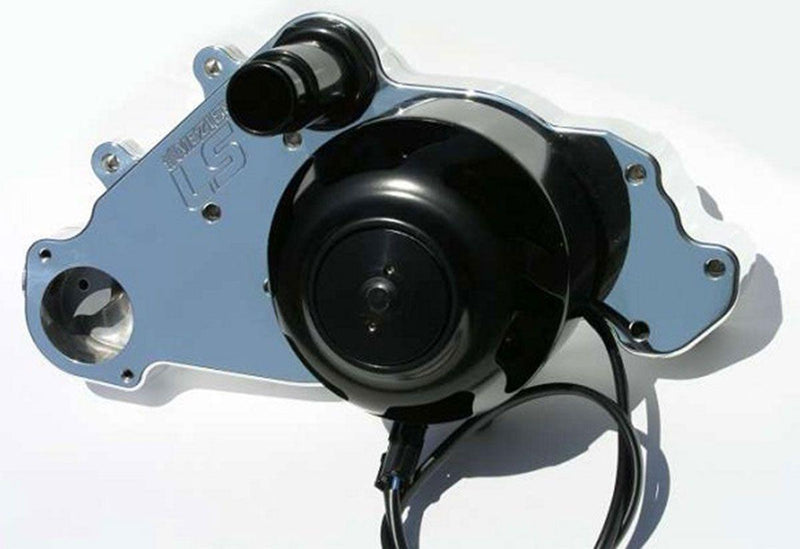

Meziere Electric Water Pump, Fits GM LS1 To LS8, High Flow Idler Style, Polished Finish (MZWP319U)
55GPM, Standard MotorMZWP319U - ELECTRIC WATER PUMP LS1 STREET
55GPM, Standard Motor
Part Number: MZWP319U
Innovative design makes for an easy installation. Unbolt your factory pump and bolt on an easy 11-14 horsepower with our street style water pump. An idler is incorporated onto the pump so your belt routing remains in its stock configuration. American made with quality far superior to any other performance aftermarket company, we build our water pumps with pride right here in the USA. Don't be mislead by inflated flow numbers and competitors' outlandish claims. Our 300 series pumps move more water and produce more pressure than any other electric pump on the market. That means better protection for your high horsepower, high demand engine!
This water pump model features:
Fits GM LS-1 through LS-8 engines
Idler design lets you keep all of your serpentine belt driven accessories
Suitable for street or drag strip use- 3000 hour life expectancy
Show quality polished finish
Standard motor provides 55 gallons per minute free flow rating
Ports provided for heater and bypass
Outlet fitting, heater and bypass fitting included
Stainless steel large diameter main shaft with high performance ceramic seal
Technical Specifications
:
Finishing The System: This pump is supplied complete with gaskets, hardware and fittings. No additional items should be necessary.
Amperage draw: Under normal use the pump will draw 11-12 amps.
Overall Height Dimension: The standard pump is 7.8" long from the mounting surface to the tip of the pump.
Pump Weight: This application weighs 14.9 lbs.
16 volt systems: When purchasing a pump for a 16 volt system we recommend the 16 volt optional motor on our pump. The 12 volt pump will work for limited use applications.
Accessories for LS-X:
Relay Wiring Kit upgrade WIK346
