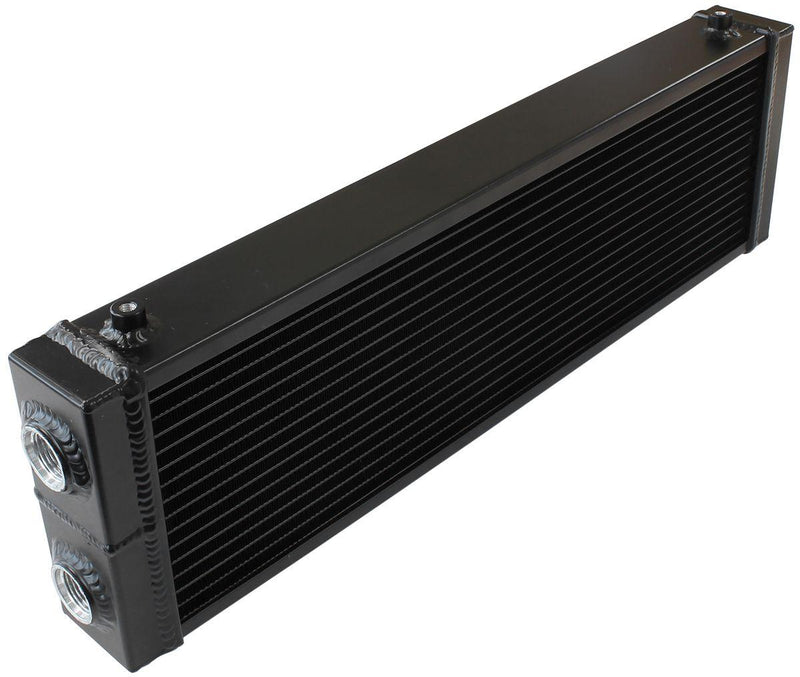

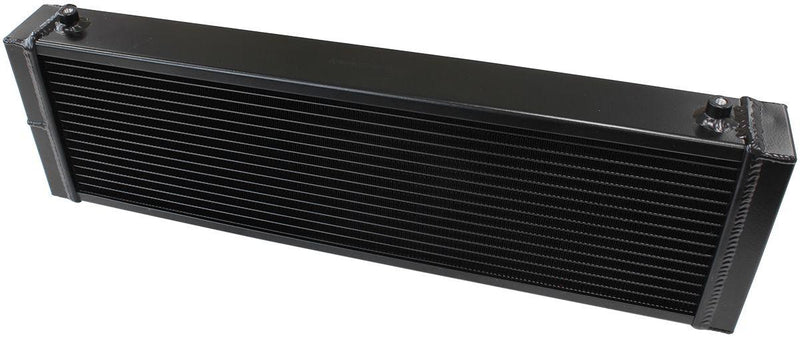

Aeroflow Small Universal Heat Exchanger (AF77-2048) AF77-2048
Aeroflow Small Universal Heat Exchanger (AF77-2048)
Aeroflow Small Universal Heat Exchanger (AF77-2048) AF77-2048
Aeroflow Small Universal Heat Exchanger (AF77-2048)

Aeroflow Small Universal Heat Exchanger (AF77-2048)

with -12 ORB Inlet/Outlet Ports
SKU: AF77-2048
$300.10 - $300.10
$300.10
$300.10 - $300.10
$300.10
+ GST
Stock Status: ⌛ Available — ships from supplier, allow 2–10 days shipping

UNIVERSAL HEAT EXCHANGER SMALL

with -12 ORB Inlet/Outlet Ports

Part Number: AF77-2048

The Aeroflow Performance universal heat exchanger is a dual pass/single row design which allows the coolant to flow across the core of the heat exchanger two times before exiting the radiator for the lowest outlet temperature possible. In a liquid-to-air intercooler system or a supercharger setup, the air is cooled by liquid, typically water. These systems require a supplemental heat exchanger to cool the liquid running through the intercooler. it is recommended this type of heat exchanger is front mounted and/or accessible to fresh air flow for optimal performance.
