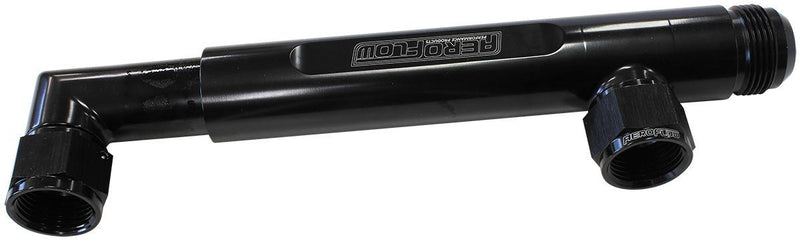

COOLANT CROSS OVER LOG

Suit GM LS

Part Number: AF64-2242

The Aeroflow Performance adjustable cross over logs aredesigned to work in conjunction with our GM LS water pump plates (sold separately AF64-2241). It simplifies the plumbing of a remote mounted electric water pump by eliminating all the extra adaptors and lines. Thisadjustable length design whichallows the log to be adjusted from 175mm (6.88") to 285mm (11.22") makes it avery universal design that canbe used with any engine utilizing block adapters not just the GM LS motor.

The coolant cross over log is one individual rail featuring 2 x female -12AN swivels with 1 x male -16AN on the end. Constructed from billet aluminium with black anodized finish. Sold as a single.

Specifications: Maximum Length from -12AN female center to center = 285mm
Overall Length when at Minimum = 250mm
Overall Height = 65mm
Outside Diameter = 35mm
Inside Diameter = 28mm
