COMP LS Cathedral Port Hydraulic Three Bolt Roller Camshaft - 285LR HR13 (CO54-460-11) CO54-460-11

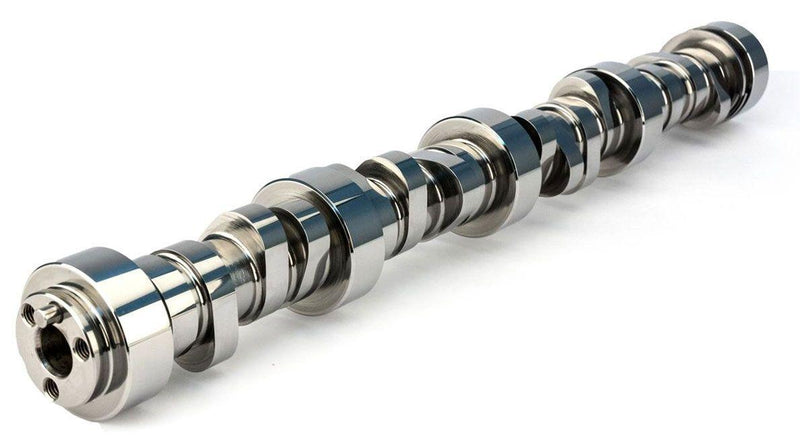

COMP LS Cathedral Port Hydraulic Three Bolt Roller Camshaft - 285LR HR13 (CO54-460-11)

Suit GM LS III / IV, 1997 - On
SKU: CO54-460-11
$1,143.50 - $1,143.50
$1,143.50
$1,143.50 - $1,143.50
$1,143.50
+ GST
Stock Status: ⚠️ Low stock — contact before purchasing

LS1 HYD ROLLER CAM 285LR HR13

Suit GM LS III / IV, 1997 - On

Part Number: CO54-460-11

  • Rpm operating range 2200 - 7200
  • Duration advertised Inlet 285°, Exh 293°
  • Duration advertised @ .050" Inlet 235°, Exh 243°
  • Valve lift with 1.7 rocker Inlet .621", Exh .624"
  • Lobe separation angle 113°
