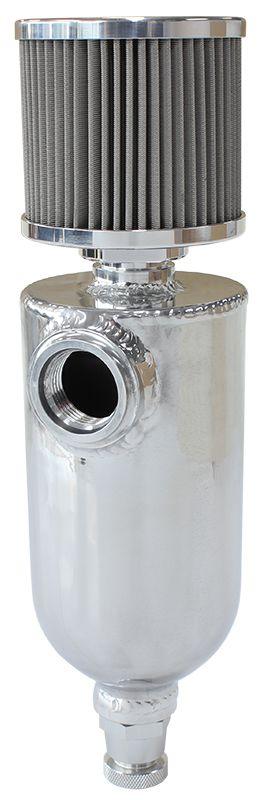

Aeroflow Universal Breather Tank - Polished (AF77-1028)

AF77-1028 - UNIVERSAL BREATHER TANK -12ORB

With Single -12 ORB Port & Stainless Steel Breather

Part Number: AF77-1028

This Aeroflow Performance universal breather tank is an essential step in removing PCV oil before it enters the combustion chamber. This is used on the fresh air side of an engine breather system and is open to the atmosphere or plumbed back into the system after the MAF sensor on EFI equipped engines.
Constructed from billet 6061-T6 aluminium and finished in either polished or black anodized finishes.
This breather tank comes with a stainless-steel filter (AF77-2001 or AF77-2001BLK) which is pre-installed onto a male -12AN on the top of the breather tank. The tank features one female -12AN O-ring which can be adapted to any lines and fittings for plumbing purposes. This tank features a drain valve (AF615-00S or AF615-00BLK) which is pre-installed into a female -10AN O-ring into the bottom of the tank. The exit of this valve incorporates a female 1/8"; NPT for connection of an appropriate drain tube to be attached if required. Simply turn the valve anti-clockwise to release/empty the tank and clockwise to close the valve.

Specifications: Dimensions:
Tank Diameter: 79mm
Tank Height: 77mm
Overall Height: 283mm
Stainless-Steel Filter Diameter: 79mm
Stainless-Steel Filter Height: 79mm
Centre to Centre of mounting holes: 60mm
2 x M8 x 1.25mm Mounting Holes

Capacity of 550mL
