Derale Universal Frame Rail Transmission Cooler (DP13224)

DP13224 - FRAME RAIL TRANS COOLER 11/32"

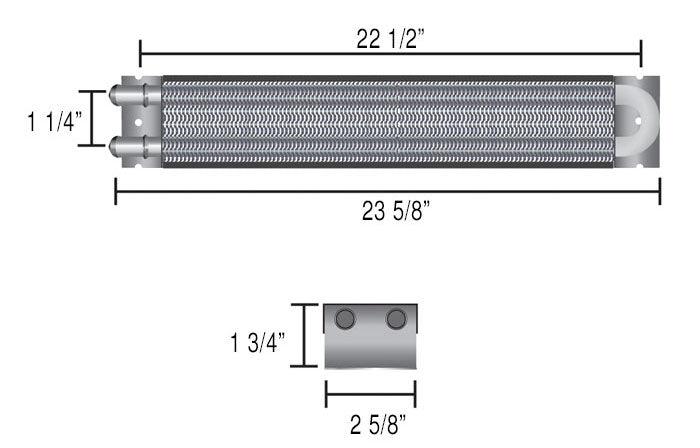

23-5/8"L x 2-5/8"W x 1-3/4"D

Part Number: DP13224

With the same 1/2" copper tubing expanded into aluminium cooling fins and embossed turbulators as our larger transmission coolers, this cooler uses a slim design to enable frame mounting in limited space applications. This kit comes with a complete transmission cooler hardware kit to easily install onto vehicles with 5/16" transmission cooler lines. Perfect for light-duty use and occasional light towing.
Specifications
Cooler style: Tube & Fin
Construction: Copper tube and aluminium fin
Inlet size: 11/32" barb
Length: 23-5/8"
Width: 2-5/8"
Depth: 1-3/4"
Inlet dim: 1-1/4"
Mounting: 22-1/2"
Core Length: 20-3/4"
Hose size: 11/32"
Hose length: 4'
Features
Prevents heat related transmission failures
Extends life of transmission
Improves transmission performance
Embossed turbulators inserted in each tube agitate fluid for maximum heat transfer
Extruded plastic cooling fin guards
2 pass cooler design
1/2" copper tubing expanded into aluminum cooling fins
11/32" hose barb inlets
Fluid Capacity: 4.5 oz.

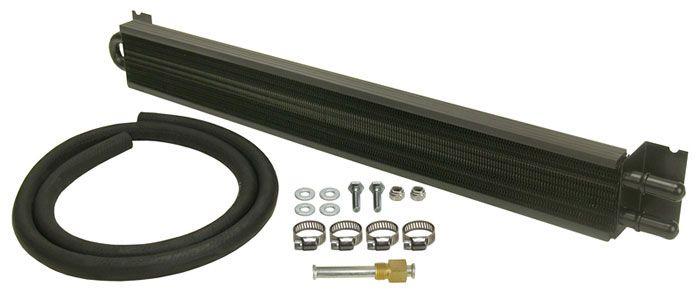

Complete hardware kit included
