Derale Electra-Cool Remote Transmission Cooler Kit (DP15900)

DP15900 - ELECTRA COOL 16 PASS REMOTE

16 Pass, x4 -8AN Inlet/Outlet, 11-1/2" H x 15-3/4 W x 5" D

Part Number: DP15900

With it's own air supply, the popular Electra-Cool remote transmission cooler can literally be mounted almost anywhere, making it a popular addition for performance compacts, hot rods, muscle cars and trucks. An efficient 16-pass tube and fin cooler coupled with a Tornado fan and aluminum brackets, this kit comes with a complete installation kit to install easily on all vehicles with 1/2" transmission cooler lines. Also included is an 180°F in-line thermostat for activating the electric fan. This is a durable, trouble-free way to add years to the life of your transmission, and perfect for heavy duty towing and hauling.
Specifications
Cooler style: 16 pass Tube & Fin
Inlet size: -8AN
Fan size: 10"
CFM: 650
Amp draw: 5.3
Width: 15-3/4"
Height: 11-1/2"
Depth: 5"
Inlet dim: 8-3/4"
Mounting: 14-3/4" x 5-1/4"
Cooler fluid capacity: 19.6 oz
Hose size: 1/2"
Hose length: 10'
Airflow: Puller (reversible)
Features
Mounts anywhere space permits
Electric fan supplies optimum airflow
Dramatically extends engine and transmission life
16 pass Tube & Fin cooler
Clear anodized aluminum shroud
650 CFM reversible Tornado electric fan
-8AN inlet size
Derale coolers are rated at 250psi working pressure and 300psi burst strength

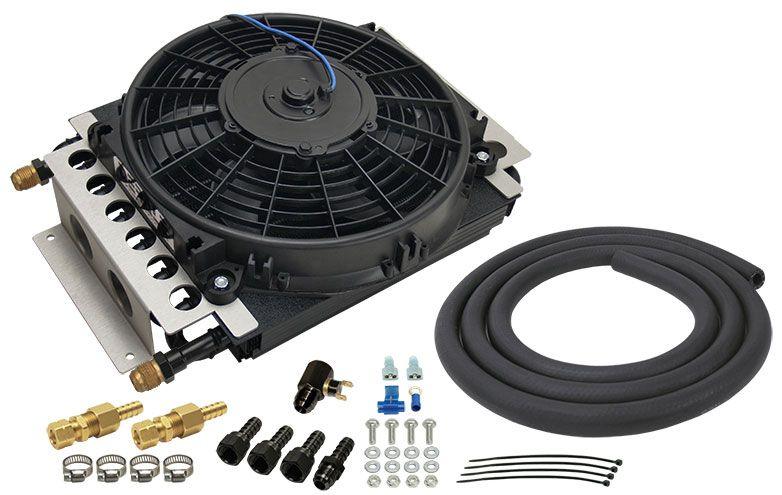

Transmission cooler kit includes fan mounted cooler, two -8AN to 1/2" barbed hose fittings, 180°F In-line thermostat, 10 ft. of OEM spec hose, 1/2" compression fittings, and hardware
